UCom-04: USB to RS422 and RS485 Converter for Industrial Communication

However, modern laptops and PCs commonly use USB interfaces instead of traditional serial ports.

The Instrutel UCom-04 provides a practical bridge between these technologies, allowing RS422 and RS485 devices to communicate with a laptop or PC through USB.

What Is the UCom-04?

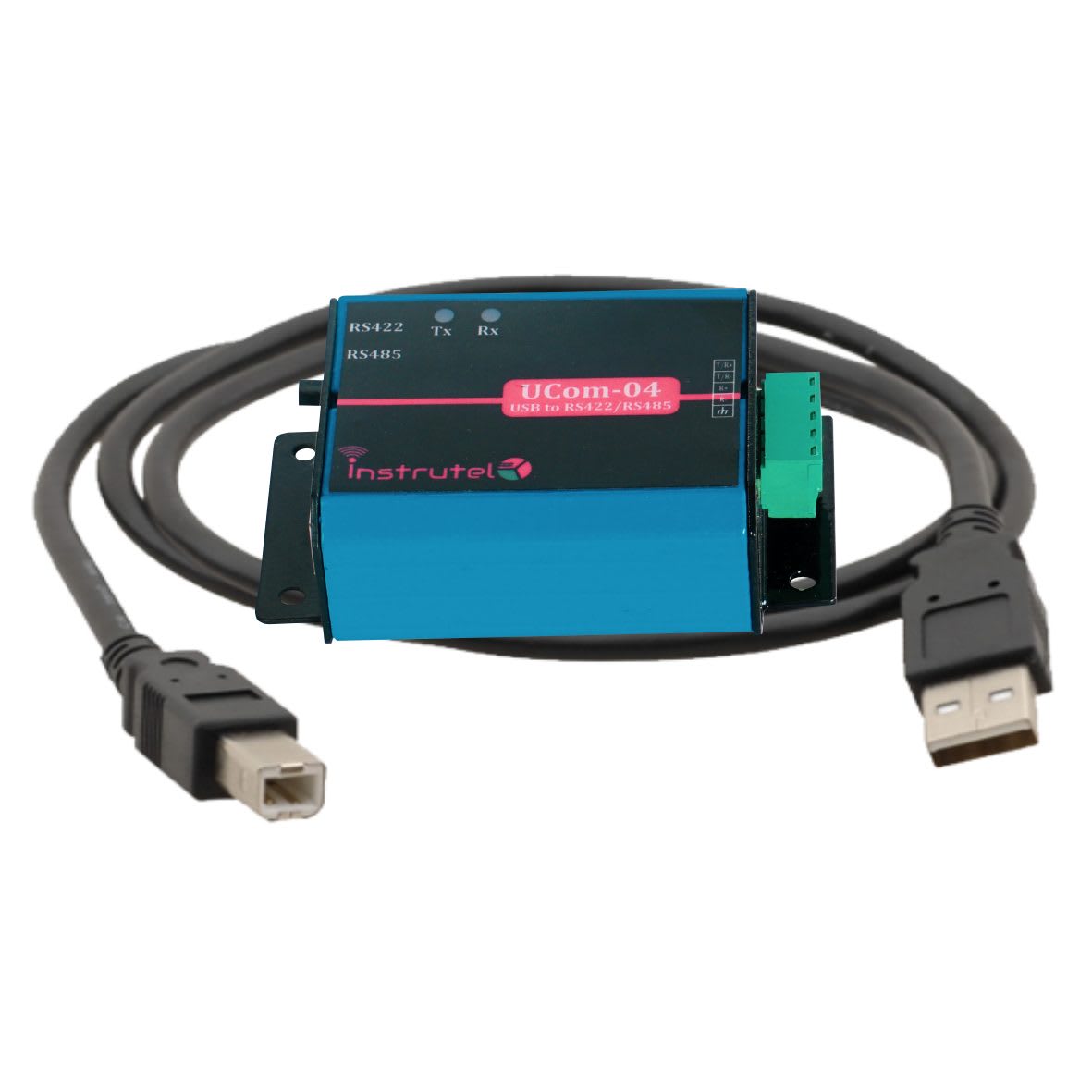

The UCom-04 is a USB-to-RS422 and USB-to-RS485 converter designed for connecting industrial serial devices to computers through a USB port.

It can be useful for applications such as:

- Industrial equipment configuration

- Field service and commissioning

- Serial device diagnostics

- Industrial automation

- Instrumentation

- RS485 device communication

- Maintenance and troubleshooting

The converter is powered through the USB connection, making it convenient for field applications where an additional power supply is not required.

Why Use a USB to RS422/RS485 Converter?

Many industrial devices continue to use RS422 and RS485 because these interfaces are well suited to serial communication in industrial environments.

A laptop, however, may not have a native RS422 or RS485 port.

The UCom-04 bridges this gap:

Laptop / PC → USB → UCom-04 → RS422 / RS485 → Industrial Device

This allows engineers and technicians to use a modern computer to communicate with compatible industrial equipment.

RS422 and RS485 Connectivity

The UCom-04 supports both RS422 and RS485 communication.

RS422

RS422 is designed for differential serial communication and can be used for point-to-point or suitable multi-device communication architectures.

The UCom-04 supports RS422 connections using transmit, receive, and ground connections with 2500 VDC isolation.

RS485

RS485 is widely used in industrial automation and instrumentation for connecting multiple devices over a serial network.

The UCom-04 supports RS485 using Data A, Data B, and Ground connections and provides 2500 VDC isolation. It can support up to 32 RS485 devices according to the product specifications.

Key Features of UCom-04

USB 2.0 Compatibility

The UCom-04 is compatible with USB 2.0, with a USB data rate of up to 12 Mbps.

RS422 and RS485 Support

A single converter supports both RS422 and RS485 interfaces, providing flexibility when working with different industrial serial devices.

Electrical Isolation

The RS422 and RS485 interfaces provide 2500 VDC isolation, helping separate the computer-side connection from the industrial serial interface.

USB Powered

The converter operates from the USB port and uses a 5 VDC input, eliminating the need for a separate power adapter in typical applications.

FTDI Driver

The UCom-04 uses an FTDI driver, supporting connection with compatible Windows, Linux, and Android systems.

Compact Design

With dimensions of approximately 83 × 54 × 26 mm and a weight of around 100 g, the compact enclosure is suitable for field service and portable applications.

## UCom-04 Technical Specifications

| Specification | UCom-04 |

|---|---|

| USB Interface | USB 2.0 |

| Serial Interfaces | RS422 / RS485 |

| RS422 Data Rate | Up to 115.2 kbps |

| RS485 Data Rate | Up to 115.2 kbps |

| RS485 Device Support | Up to 32 devices |

| Isolation | 2500 VDC |

| Power Supply | 5 VDC via USB |

| Driver | FTDI |

| Operating Systems | Windows, Linux, Android |

| Enclosure | Aluminium HE30 |

| Dimensions | 83 × 54 × 26 mm |

| Weight | Approximately 100 g |

| Operating Temperature | 0°C to +70°C |

Specifications are based on Instrutel's current UCom-04 product information.

## Applications of UCom-04

The UCom-04 can be useful in a wide range of industrial and technical applications.

### Industrial Automation

Engineers can use a laptop to communicate with compatible RS422 or RS485 automation equipment for configuration, testing, and diagnostics.

### Field Service

Its compact and USB-powered design makes it suitable for technicians who need to carry a serial communication interface while working at different sites.

### Instrumentation

The converter can connect computers with compatible industrial instruments that use RS422 or RS485 interfaces.

### Equipment Commissioning

During installation and commissioning, technicians can use a laptop to communicate with serial devices and verify communication.

### Troubleshooting

The UCom-04 can also serve as a useful interface when diagnosing communication issues between a computer and an RS422 or RS485 device.

## Removable Terminal Block

The UCom-04 includes a removable terminal block, making field wiring more convenient. This can be particularly useful when technicians frequently connect and disconnect industrial serial equipment during testing or commissioning.

## UCom-04 for Industrial Communication

Reliable communication is an important part of industrial automation. Whether an engineer is configuring a device, collecting data, testing a machine, or troubleshooting an existing installation, having the correct communication interface can simplify the process.

The UCom-04 provides a convenient connection between a modern USB-equipped computer and industrial devices using RS422 or RS485 communication.

## Why Choose UCom-04?

The UCom-04 combines several useful capabilities in one compact device:

- USB connectivity for modern computers

- RS422 and RS485 serial communication

- 2500 VDC isolation

- USB-powered operation

- Up to 115.2 kbps RS422/RS485 communication

- Support for up to 32 RS485 devices

- Windows, Linux, and Android compatibility

- Removable terminal block

- Compact aluminium enclosure

These features make it suitable for industrial automation, instrumentation, commissioning, field service, and serial communication applications.

## Conclusion

The UCom-04 USB to RS422/RS485 converter provides a simple way to connect modern laptops and PCs with industrial equipment that uses RS422 or RS485 communication.

With support for both serial interfaces, electrical isolation, USB-powered operation, compact construction, and compatibility with Windows, Linux, and Android, the UCom-04 can be a practical tool for industrial engineers, system integrators, and field technicians.

## Explore UCom-04

Learn more about the Instrutel UCom-04 USB to RS422/RS485 converter, including its technical specifications, datasheet, and integration information:

https://www.instrutel.com/products/data-converters/ucom-04/
